Evolution Door Controller

EM22-U

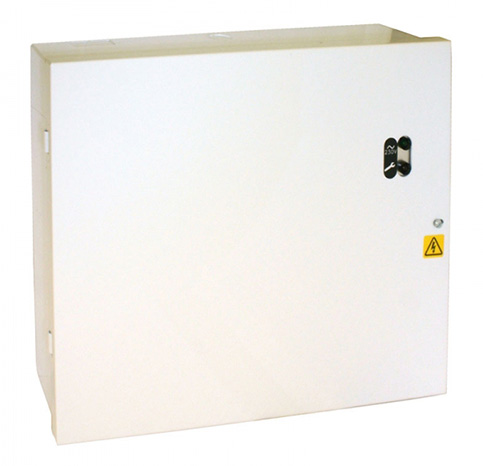

The universal door controller is housed in a metal case with integral PSU and Battery Back-up as standard. It also benefits from a re-designed pcb utilising a faster processor​and the ability to control all previous standard media types without hardware options,configuration or part number derivatives.

This means that the controller no longer needs to be ordered for specific bar-code, magnetic stripe or proximity applications as it can be used for all purposes. For ease of use, there are also options available for an incorporated network switch and RS485 communications.

Triple and Quad controllers are also available in the same box thus having the same physical dimensions.
Evolution Door Controller
EM22-​U SPECIFICATION
Temperature Range
0 – 40C
Operating Power Requirement
Mains supply rated at 100 - 240V AC/2A; 50Hz/60Hz
Current Rating
Up to 3.5A @ 12V DC
Media Types
Magnetic stripe, Proximity, Barcode
Readers / Doors
2 x 5V/12V readers, 2 x doors
Available Inputs
8 x optically isolated @ < 20mA
Available Outputs
8 x semiconductor 30V 500mA, 2 x volt-free relay 2A @ 30V, 30 x I/O indicators
Performance
High performance, low-power ARM9 processing engine
Micro-SD memory card slot
High-speed FLASH and DRAM program storage
2MByte of (high speed) battery backed SRAM
Non-volatile real-time clock/calendar
Rechargeable NiMH back-up battery
Maximum storage 50,000 cards
Physical
Metal housing
Mains indicator
Battery indicator
Internal fused terminal block (T3.15A)
Input/Output LED indicators
Maximum dimensions: 360mm W, 340mm H, 90mm D
