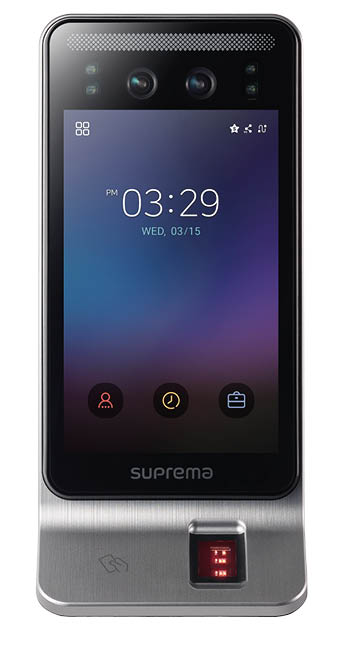

SUPREMA FACESTATION F2
SUPREMA FACESTATION F2 -
Biometric/Proximity Reader
Offering credential options of face, fingerprint, cards and mobile access, FaceStation F2 is the best-in-class multimodal device in the industry. It also supports dual frequency access cards, NFC and BLE-based Mobile Access Cards as well as Template on Card that allows authentication via biometric data stored in cards.
The FaceStation F2 works to provide employers with details of their workers actions in real time. With it’s massive memory capacity, it can easily handle the large number of users accommodating up to 100,000 users*, 50,000 face image logs and 5,000,000 text logs.
FaceStation F2 provides improved user convenience with 7“ LCD screen and walkthrough face recognition. Users no longer have to stand still and fit faces
to a predefined area. Recognition distance range has also been increased to 50cm ~ 130cm.
Thanks to its IR recognition technology, FaceStation F2 can authenticate faces under dim lighting, allowing uninterrupted face recognition in all indoor lighting conditions. Not only that, with it’s IP65 rating, FaceStation F2 is dust-proof, waterproof and easy to maintain.
With the highest level of device security, FaceStation F2 not only encrypts all biometric credentials and personal information but also protects the data with secure boot process. FaceStation F2 is built on Android and all its security enhancements.
The FaceStation F2 is Fastlane enabled. Designed as a powerful back-end solution for Time and Attendance applications, Fastlane provides the mechanism that facilitates device integration into HR, Payroll and other core systems. It’s cloud-based platform processes and presents data from a range of devices through a single interface for easier development and a faster rollout.
Click here to learn more
BENEFITS OF THE FACESTATION F2
- Unrivalled face recognition performance
- Best in class multimodal device
- Contactless solution for new normal
- Robust device security and data encryption
- Enterprise ready and user friendly
SUPREMA FACESTATION F2
SPECIFICATION
BIOMETRIC
Face
RF OPTION
125kHz EM & 13.56MHz MIFARE, MIFARE Plus, DESFire EV1/EV21, FeliCa
RF READ RANGE*
EM/MIFARE/DESFire: 50mm (2”),
FeliCa: 30mm (1.2”)
INTERNAL LASER SCANNER OPTIONS
Standard Range, Long Range, Extreme Long Range, Near Far
* RF read range will vary depending on the installation environment
MOBILE
NFC, BLE
CPU
1.8 GHz Dual Core + 1.4 GHz Quad Core
Indicators
status indicators and 24 hour time display.
MEMORY
16GB Flash + 2GB RAM
LCD TYPE
7” IPS color LCD
LCD RESOLUTION
800 x 1280 pixels
SOUND
16bit
OPERATING TEMPERATURE
119.8mm x 223mm x 23.5mm (4.7” x 8.8” x 0.9”)
WEIGHT
Device: 585g
Bracket (Including washer and bolt): 181g
IP RATING
CE, FCC, KC, RoHS, REACH, WEEE
MATCHING SPEED
Less than 0.5 sec
ANTI-SPOOFING
Supported
MAX. USER
100,000 (1:1), Face 50,000 (1:N)
MAX. TEXT LOG
5,000,000
MAX. IMAGE LOG
50,000
ETHERNET
10/100 Mbps, auto MDI/MDIX
RS-485
1ch Host or Slave (Selectable)
WIEGAND
1ch Input or Output (Selectable)
TTL INPUT
2ch Inputs
RELAY
1 Relay
USB
USB 2.0 (Host)
TAMPER
Supported
POWER
Voltage: DC 12V - DC 24V
Current: Max. 2.5 A
*Use a 24V/2.5A adapter. Must follow the product manual when using a 12V adapter.
1 DESFire EV2 cards are supported by having backward compatibility of DESFire EV1 cards.
CSN and smart card functions are compatible with FaceStation F2.
